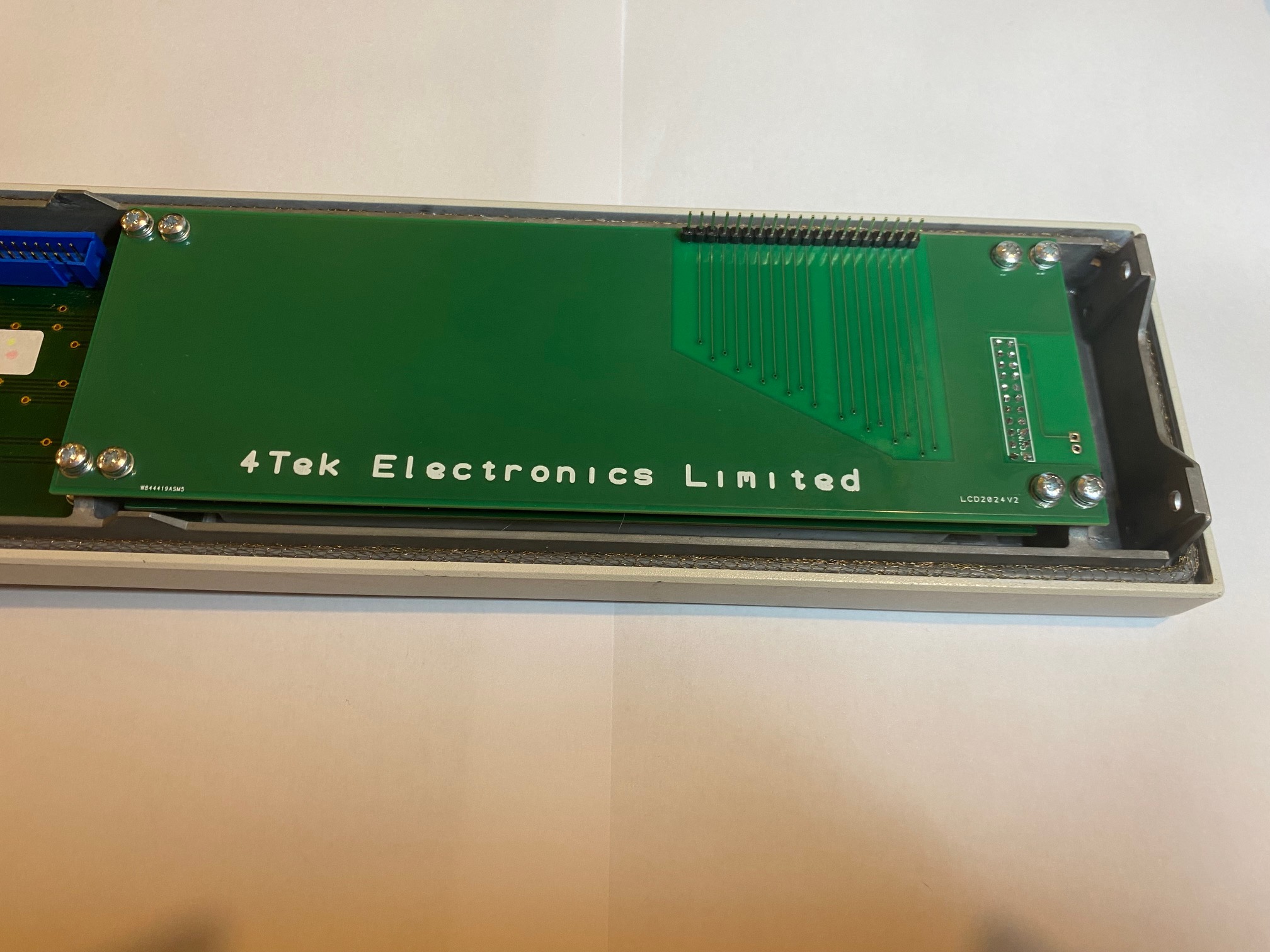

Replacement LCD for Marconi/IFR 2023/4/5

Replaces the no longer available Optex DMF5010 LCD module.

LED backlight.

Drop-in replacement. Uses the original mounting points and accepts the original ribbon cable connector.

No modification to the original instrument required except for unplugging the DC input to the now redundant CFL inverter.

Fits Marconi/IFR 2023, 2024, 2025 including 'A' versions.

Externally indiscernible from the original display. The photos look a bit washed out for some reason, rest assured it is as crisp and bright as the original display once was.

Fully assembled and tested.

White text on blue background as standard. Other colour combinations available to special order.

Full installation instructions included.

NOTE: Do not clean the LCD or PCB with isopropyl achohol (IPA) as it will leech in to the display and may cause permanent marking. No returns will be accepted for any such damage.

Please use the contact page for further information / purchase.
